|Category||Offshore Supply Vessels|
|Vessel Name||Bravante VII|
|Size||284’ x 60’ x 24’-6”|
|Vessel Type||OSV - Offshore Support Vessel|

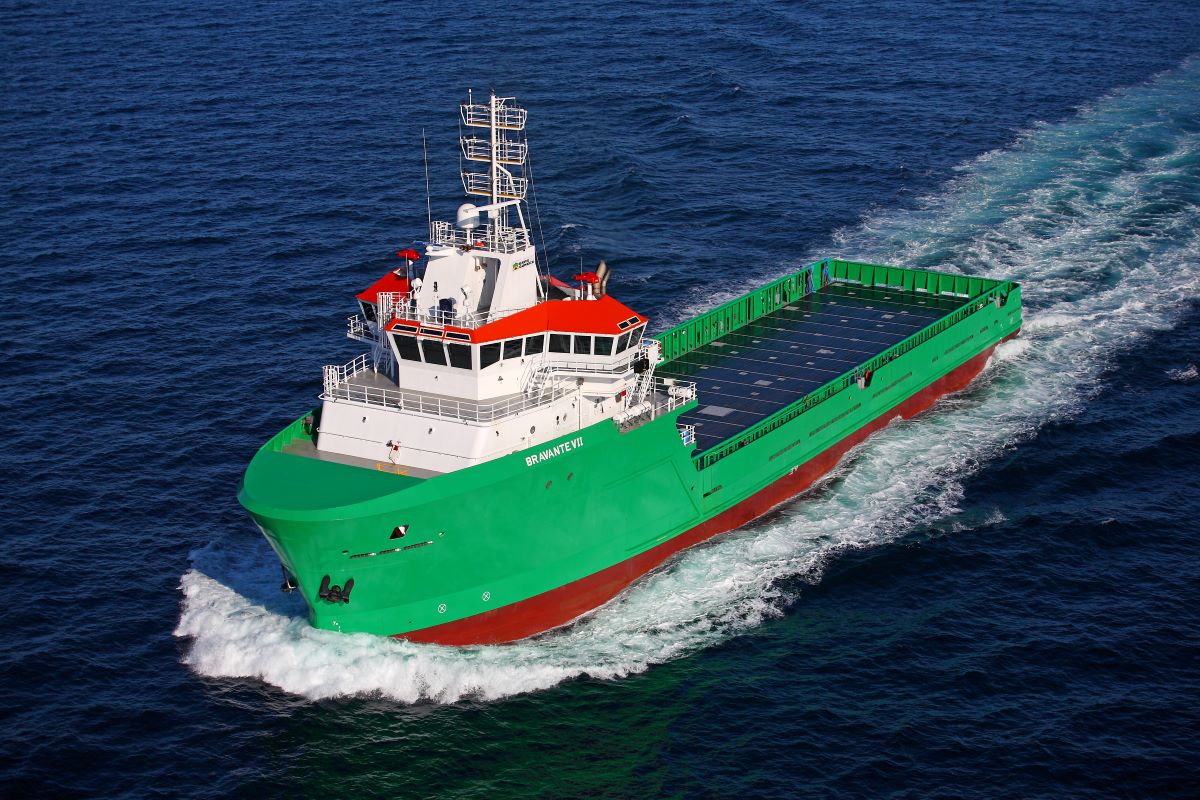

The BRAVANTE VII is the third (3rd) STX SV290 design of five vessels in a series which are all, ABS Classed, AC Diesel-Electric powered, twin Z-drive propelled PSV’s measuring 284’(86.5m) x 60’(18.3m) x 24’-6”(7.5m). These high-tech vessels feature four Cummins QSK-60DM 16-cylinder turbo-charged IMO Tier II diesel generator engines each rated at 1825 kW at 1,800 rpm. Cummins also furnished the four Marathon Model 744 690VAC main generators. Main propulsion power is provided by two 690VAC electric motors driving two Schottel Combi-Drives SCD 2020 Single Fixed Pitch Propellers with Nozzles rated at 2,500 kW at 750 rpm each for a total of 6,700 Hp. Schottel also provides two
STT 4 Fixed Pitch Reversing Tunnel Thrusters rated at 1,180 kW at 1,170 rpm, each with direct coupled Hyundai 690VAC electric motors. GE Energy provides the complete system integrated diesel electric package, including the thruster drives, motors, control systems, DP system, switchboards, motor control centers, automation and navigation/ communication electronics. These vessels are capable of a maximum speed of over 13 knots with a cruising speed of 12 knots. The fully integrated bridge is arranged for increased visibility and features the latest technology in navigation, communication equipment.
